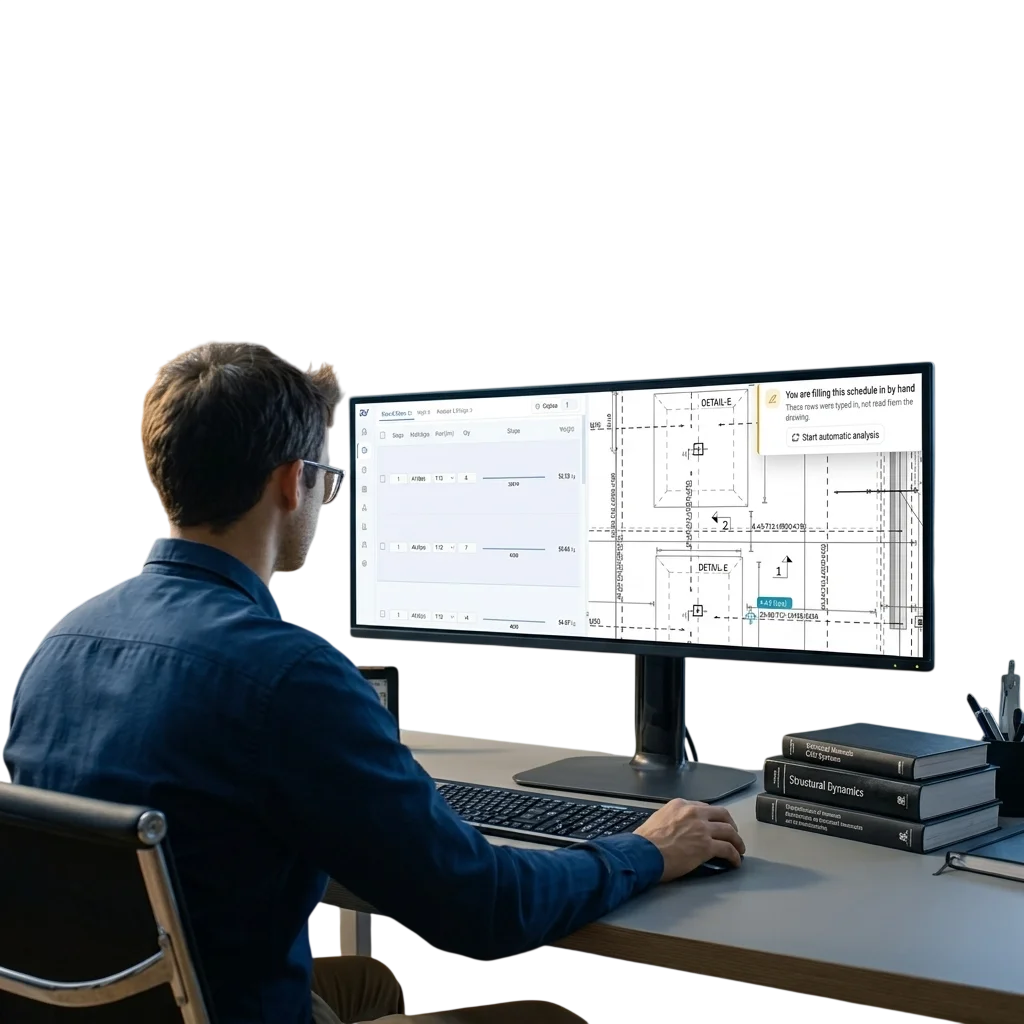

Rebar drawings to production-ready data.
The AI engine turning construction reinforcement drawings into production-ready data.
The challenge
From drawings to production shouldn't be a manual bottleneck.
Turning reinforcement drawings into production data takes time, repetitive work, and careful checking. Revisions add complexity and slow down production.
The solution
From reinforcement drawings to production, powered by AI.
RebarVision transforms reinforcement drawings into structured production data. Review and approve the results, start production, and share rebar positioning with site teams—all with less manual work.
Upload drawings
Upload your reinforcement drawings to RebarVision.
Process with AI
RebarVision reads the drawing and builds structured production data.
Review & approve
Review the generated data and approve it before production.
Start production
Send the approved data straight to production.
Share positioning
Share rebar positioning with site teams for installation.
Everything connected in one workspace.
Build the reviewed rebar schedule first, then connect the product catalog, warehouse, and project team around the same drawing revision.
Keep reinforcement information organized from drawing review through production and site installation.
Built around the real work.
Every module connects back to the rebar schedule, so the whole team operates from a single, verified source of truth.
Export reportWS-204 · REV C · approvedPDFWS-204_report.pdfBranded report · 6 pagesReady
XLSXWS-204_schedule.xlsx84 bars · 132.5 kgReady
XLSXWS-204_machine.xlsxBending machine formatReady
Download all
Your data. Your workflow.
Export reviewed reinforcement data in the formats your team, systems, and machinery need.
Who it's for
Built for the reinforcement industry.
Rebar Fabricators
Prepare reinforcement data for fabrication workflows.
Precast Manufacturers
Process reinforcement data for walls, slabs, pillars, beams, and other concrete elements.
Rebar Installation Contractors
Make reinforcement information easier to access and use on site.
Factory & Production Teams
Move from approved data to production with less manual processing.
Site & Project Managers
Improve access to structured reinforcement and positioning information.
General Contractors & Engineering Companies
Support coordination across reinforcement workflows.
FAQ
Frequently asked questions.
Everything you need to know about RebarVision, from supported workflows to data handling.
What is RebarVision?
RebarVision is an AI-powered solution designed to transform construction reinforcement drawings into production-ready data.
Who is it for?
RebarVision is designed for rebar fabricators, precast manufacturers, installation contractors, production teams, project managers, and engineering companies.
What reinforcement workflows does it support?
The intended workflows include cast-in-situ reinforcement and precast elements such as walls, slabs, pillars, and beams. Available workflows depend on the current implementation.
How long does processing take?
Target processing times are under 10 minutes for cast-in-situ reinforcement and under 5 minutes for precast elements. Actual times depend on drawing complexity and processing scope.
Do I need to review the generated data?
Yes. You should review and approve the generated data before using it for production. RebarVision aims to reduce manual work, not replace necessary checks and professional judgment.
Can I export data for our machinery?
The intended workflow includes customized Excel exports formatted to suit machinery and manufacturing requirements. Compatibility depends on the machine and the available export configuration.
Can I share rebar positioning with site teams?
Yes. Invite site team members by email, or create a public link that anyone with the link can open to view rebar positioning for installation.
Which drawing formats are supported?
Supported input formats depend on the current implementation. Join the waitlist to discuss your drawing formats and workflow requirements.
Can RebarVision integrate with our existing systems?
Export options are intended to support different workflows, including tabular data and JSON. Specific integrations and compatibility depend on implementation.
How is our project data handled?
Review the published privacy and data-handling policies for information about storage, access, retention, and processing before uploading confidential project drawings.
